Metafuse
CHOPPER

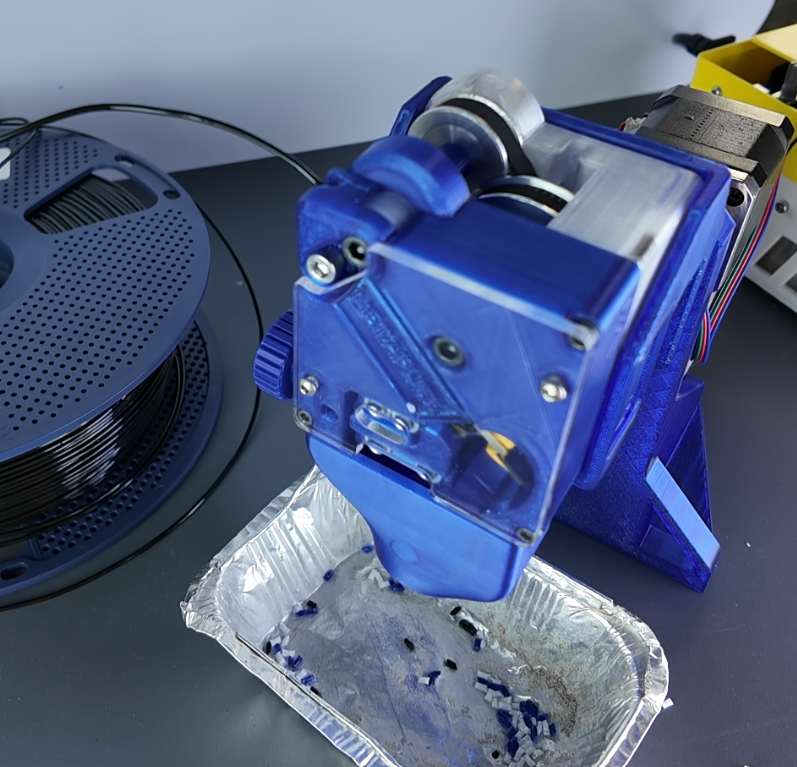

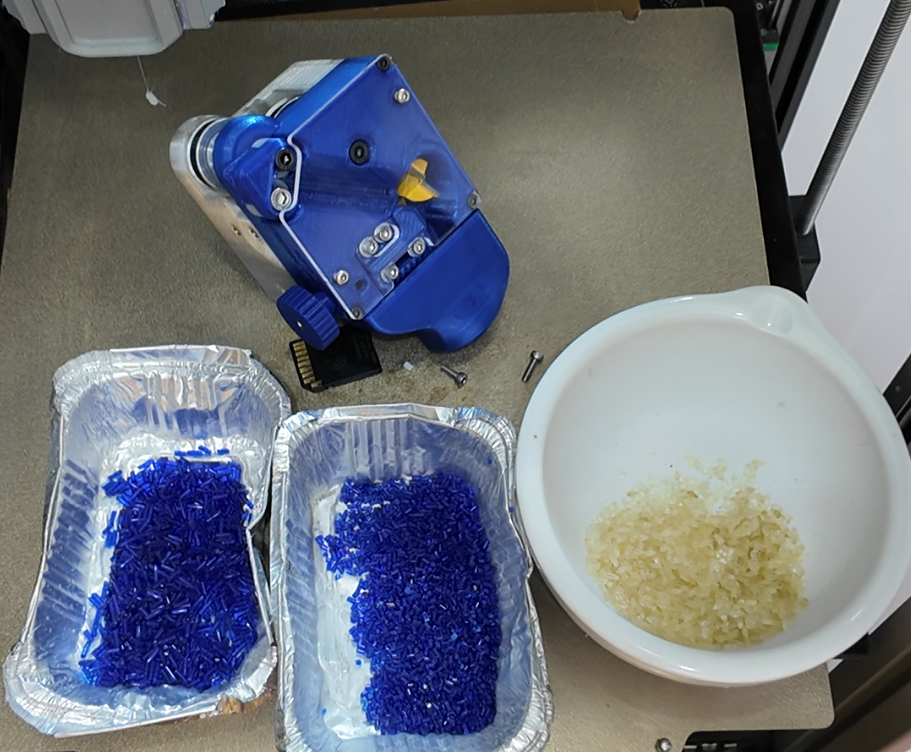

Old and expired filaments turned into precision pellets for extrusion or recycling.
CHOPPER is born from the scarcity of pellets yet abundance of filaments.
- Carbide and HSS cutters

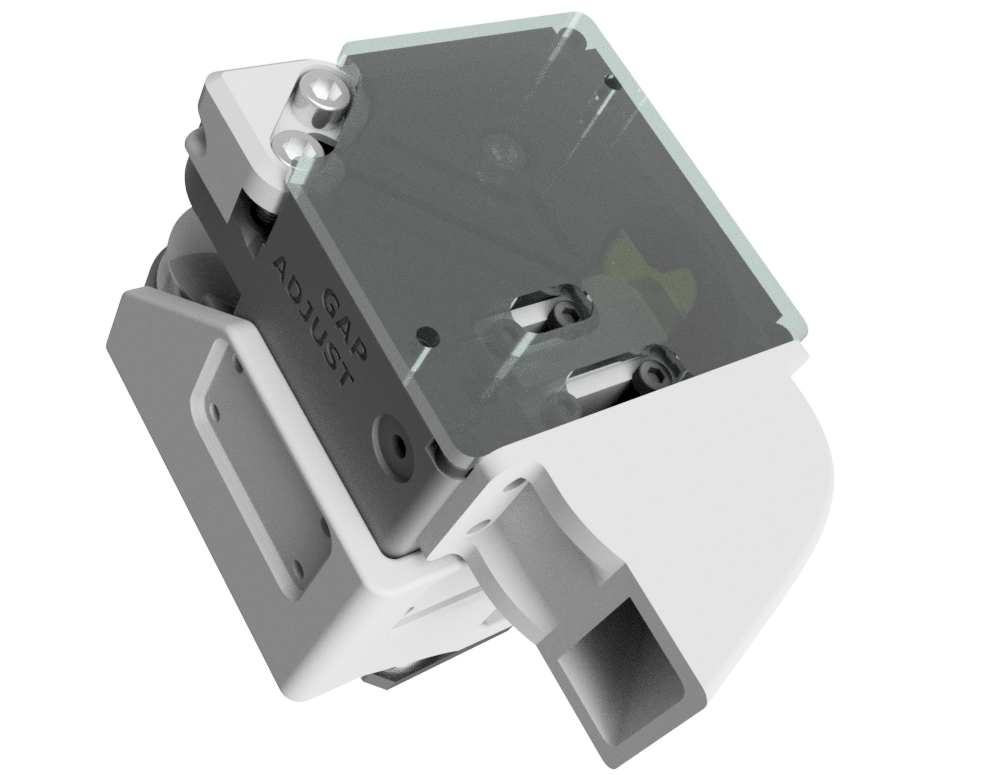

- See-through Cover
- Silicone feeders
- Fully Open Source
Technical Specifications
| Specification | Detail |
|---|---|
|
Feed Mechanism |
Silicone Rollers |
|
Stationary Knife |
Carbide |
|
Rotary Knife |
HSS Router Bit |
|
Actuator |

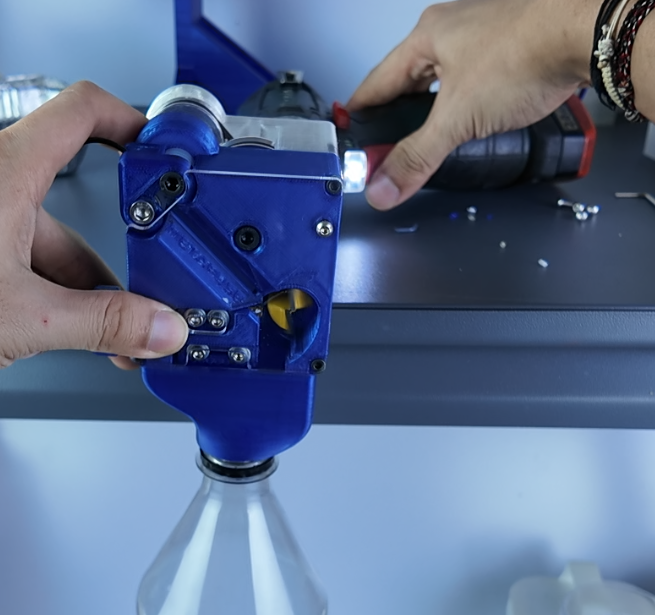

Belt Drive; Stepper or Drill |
|
Dimensions |
70mmx80mmx70mm (LxWxH) |
TECHNICAL NOTES
- CHOPPER readily cuts filaments and strands less than 4mm in diameter. Sudden enlargening of the strand diameter may slip.
- Incorrect setting of the knife clearance, especially when set too close, will result in : Rotating Cutter damage/wear, or Motor stalling. This does not effectively ‘break’ the device.

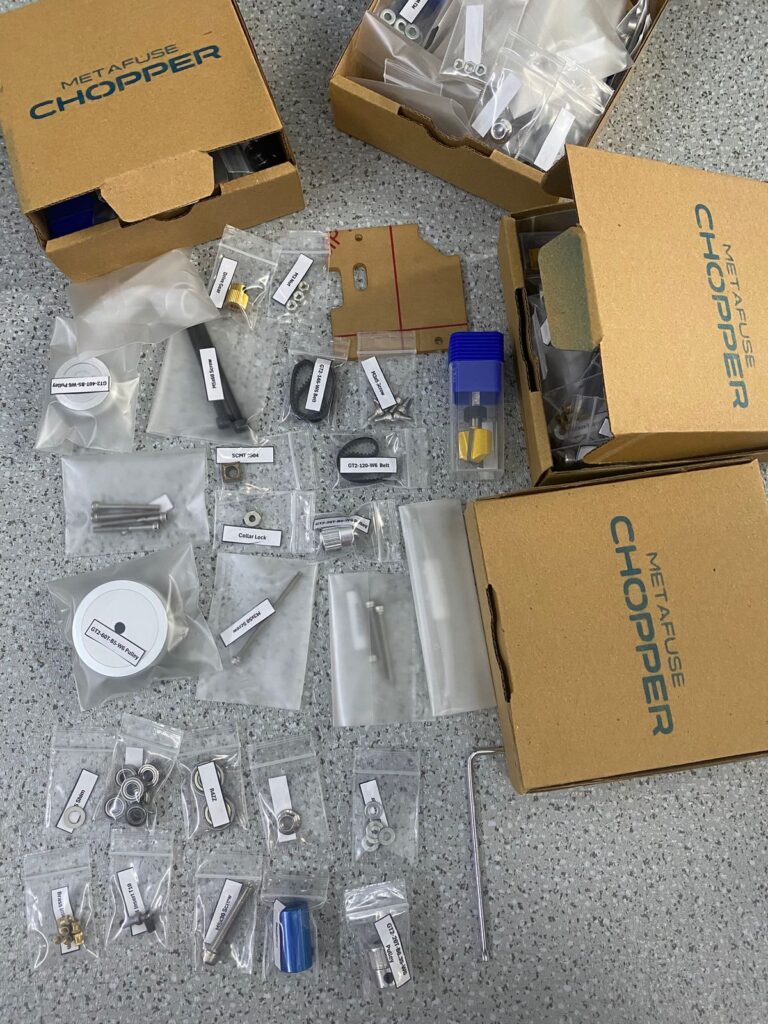

- The CHOPPER Kit provided by Metafuse includes a used SCMT Carbide Cutter, which does not affect performance but lowers cost.
- Users/Builders MUST print and/or install the ‘Cover’. The rotating cutter is sharp and will hurt you when touched during chopping.
- Due to the open source nature, Metafuse is not responsible for harm caused by operating CHOPPER outside recommended practices.
- Although belt-driven, operating CHOPPER can still be loud or disruptive to hearing due to the ‘clapping’ sounds made when filaments are cut, in addition to motor noise.
See detailed info in the Wiki (under construction).
Place your order by sending an e-mail to admin@3dprint.id with your:
Name :
Address :
ZIP Code / PO Box :
Tel. No :

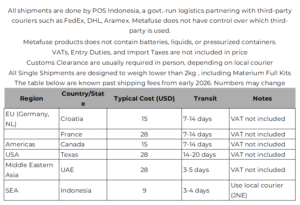

Transactions are done by Paypal Invoice with your shipping calculated.
Thank you!
